▼ 品名/編號：OPEN FRAME POWER SUPPLY |
|
>> 其他產品 |
|
![OPEN FRAME POWER SUPPLY]() |
>> 產品介紹

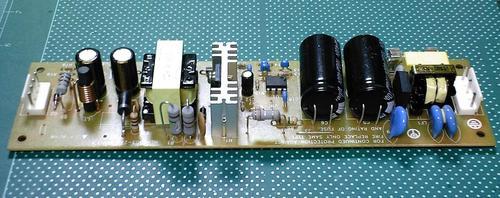

HL-9903-241
This power supply is special design for external computer accessories, It supply +24V/1A,Total output power 24W.Peak Load 4A, The power supply have O.V.P and Short Protection.
Specifications:
AC input voltage: 85-264VAC
AC input frequency: 47/63Hz
AC input current: 2A Max@110Vac
Maximum inrush current:
50A Max.@110Vac input (25℃ cold start)
100A Max.@220Vac input (25℃ cold start)
Line regulation: ± 1%
Load regulation: +24V=± 10%
Efficiency: 75% minimum at normal load
Hold up time: 10msec
Operation temperature: 0℃ to +40 ℃ (Normal load)
Storage temperature: -20 ℃ to +85 ℃
Size: 195(L)x50(W)x23(H)mm
|
|
|
|
|
|
|
|
|
