▼ 品名/編號：Solar LED Street Light （太陽能LED |
|
>> 其他產品 |
|

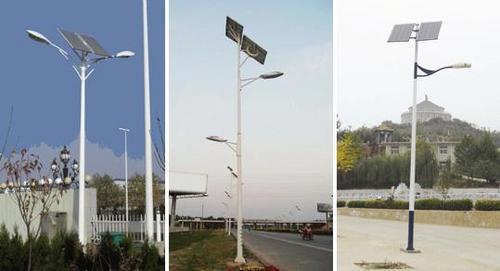

![Solar LED Street Light （太陽能LED]() |
>> 產品介紹
Solar LED Street Light (SLS-140)
System Power Consumption：40W
Luminous Flux @Ta=25℃：＞2400 lm
Max, illumination (E max.)：＞80 lux(@ 3M)
Voltage Range：DC 12V
Operating Temp.：-30℃ ~ 60℃
Carrelated Color Temperature：5000 ~ 6000K
Weight：5 kg
Dimensions(mm)：500 L × 190 W × 147 H
Charge Controller：Output voltage:12V, Maximum Charge Current:20A, Over/Under charge protection
Solar Module options：260W/180W/140W/130W
Battery Silicon：solar battery,150Ah, 12V output v.
Ingress Protection：IP65
Solar LED Street Light (SLS- 120)
System Power Consumption：20W
Luminous Flux @Ta=25℃：＞1200lm
Max, illumination (E max.)：＞60 lux(@ 3M)
Voltage Range：DC 12V
Operating Temp.：-30℃ ~ 60℃
Carrelated Color Temperature：5000 ~ 6000K
Weight：3 kg
Dimensions(mm)：300 L × 190 W × 147 H
Charge Controller：Output voltage:12V, Maximum Charge Current:20A, Over/Under charge protection
Solar Module options：260W/180W/140W/130W
Battery Silicon：solar battery,150Ah, 12V output v.
Ingress Protection：IP65
Solar LED Street Light (SHT-001、SHT-002)
Pole height： 2.5m/seamless steel/hot dip galvanizing and spraying powder
Light Sources：5w/12V LED (18000H life span)
Solar Panel：5w/12V monocrystalline solar panel , life span ＞20 years
Battery：24AH/12V gel battery , life span：5-8 years
Working Time：8-10 hours/day , can continue working 2-3 days without sunlight
Controller：5A/12V optical & time control
Wind Resistance：≧120km/H
Working Temp：-30℃ ~ 60℃
Solar LED Street Light (SHT-003)
Pole height：3m/seamless steel/hot dip galvanizing and spraying powder
Light Sources：9w/12V 3-color energy saving bulb (3000-5000H life span)
Solar Pane：l 35w/12V monocrystalline solar panel , life span ＞20 years
Battery：38AH/12V gel battery , life span：5-8 years
Working Time：8-10 hours/day , can continue working 2-3 days without sunlight
Controller：5A/12V optical & time control
Wind Resistance：≧ 120km/H
Working Temp：-30℃ ~ 60℃
Solar LED Street Light (SHT-004、SHT-005)
Pole height：3m/seamless steel/hot dip galvanizing and spraying powder
Light Sources：5w/12V 2pcs LED(18000H life span)
Solar Panel：45w/12V monocrystalline solar panel , life span ＞20 years
Battery：50AH/12V gel battery , life span : 5-8 years
Working Time：8-10 hours/day , can continue working 2-3 days without sunlight
Controller：5A/12V optical & time control
Wind Resistance：≧ 120km/H
Working Temp：-30℃ ~ 60℃
Solar LED Street Light (SHT-006、SHT-007)
Pole height：3m/seamless steel/hot dip galvanizing and spraying powder
Light Sources：5w/12V 2pcs LED(18000H life span)
Solar Panel：45w/12V monocrystalline solar panel , life span ＞20 years
Battery：50AH/12V gel battery , life span : 5-8 years
Working Time：8-10 hours/day , can continue working 2-3 days without sunlight
Controller：5A/12V optical & time control
Wind Resistance：≧ 120km/H
Working Temp：-30℃ ~ 60℃
Solar LED Street Light (SHT-008、SHT-009)
Pole height：3m/seamless steel/hot dip galvanizing and spraying powder
Light Sources：5w/12V 2pcs LED(18000H life span)
Solar Panel：45w/12V monocrystalline solar panel , life span ＞20 years
Battery：50AH/12V gel battery , life span : 5-8 years
Working Time：8-10 hours/day , can continue working 2-3 days without sunlight
Controller：5A/12V optical & time control
Wind Resistance：≧ 120km/H
Working Temp：-30℃ ~ 60℃
Solar LED Street Light (SHT-010)
Pole height：5-6m/seamless steel/hot dip galvanizing and spraying powder
Light Sources：25w/24V LED ( 2100Lm, 50000-80000H life span)
Solar Panel：100w/24V monocrystalline solar panel, life span ＞20 years
Battery：65AH/12V 2 pcs gel battery , life span : 5-8 years
Working Time：8-10 hours/day , can continue working 2-3 days without sunlight
Controller：5A/24V optical & time control
Wind Resistance：≧ 136km/H
Working Temp：-30℃ ~ 60℃
Solar LED Street Light (SHT-011)
Pole height：6m/seamless steel/hot dip galvanizing and spraying powder
Light Sources：35w/24V Low Pressure Sodium ( 4600Lm , ≧60000H life span)
Solar Panel：115w/24V monocrystalline solar panel , life span ＞20 years
Battery：80AH/12V 2 pcs gel battery , life span : 5-8 years
Working Time：8-10 hours/day , can continue working 2-3 days without sunlight
Controller：10A/24V optical & time control
Wind Resistance：≧ 136km/H
Working Temp：-30℃ ~ 60℃
Solar LED Street Light (SHT- 012)
Pole height：6m/seamless steel/hot dip galvanizing and spraying powder
Light Sources：40w/24V Low Pressure Sodium ( 2600Lm , ≧60000H life span)
Solar Panel：135w/24V monocrystalline solar panel , life span ＞20 years
Battery：80AH/12V 2 pcs gel battery , life span : 5-8 years
Working Time：8-10 hours/day , can continue working 2-3 days without sunlight
Controller：10A/24V optical & time control
Wind Resistance：≧ 136km/H
Working Temp：-30℃ ~ 60℃
Solar LED Street Light (SHT- 013)
Pole height：8m/seamless steel/hot dip galvanizing and spraying powder
Light Sources：36w/24V Low Pressure Sodium( 5750Lm , ≧60000H life span)
Solar Panel：120w/24V monocrystalline solar panel , life span ＞20 years
Battery：80AH/12V 2 pcs gel battery , life span : 5-8 years
Working Time：8-10 hours/day , can continue working 2-3 days without sunlight
Controller：10A/24V optical & time control
Wind Resistance：≧ 136km/H
Working Temp：-30℃ ~ 60℃
Battery Box：in the middle
nuts , screw , bolts fixed mount , wrie, embedded parts , flange and others
Solar LED Street Light (SHT- 014)
Pole height：8m/seamless steel/hot dip galvanizing and spraying powder
Light Sources：50w/24V Electrodeless lamp ( 3250Lm , ≧60000H life span)
Solar Panel：165w/24V monocrystalline solar panel , life span ＞20 years
Battery：100AH/12V 2 pcs gel battery , life span : 5-8 years
Working：Time 8-10 hours/day , can continue working 2-3 days without sunlight
Controller：10A/24V optical & time control
Wind Resistance：≧ 136km/H
Working Temp：-30℃ ~ 60℃
Battery Box：underground
nuts , screw , bolts fixed mount , wrie, embedded parts , flange and others
Solar LED Street Light (SHT- 015)
Pole height：8m/seamless steel/hot dip galvanizing and spraying powder
Light Sources：45w/24V LED lamp ( 3600Lm , ≧60000H life span)
Solar Panel：150w/24V monocrystalline solar panel , life span ＞20 years
Battery：100AH/12V 2 pcs gel battery , life span : 5-8 years
Working Time：8-10 hours/day , can continue working 2-3 days without sunlight
Controller：10A/24V optical & time control
Wind Resistance：≧ 136km/H
Working Temp：-30℃ ~ 60℃
Battery Box：in the middle
nuts , screw , bolts fixed mount , wrie, embedded parts , flange and others
Solar LED Street Light (SHT- 016)
(the main road and lesser road )
Pole height：8m/seamless steel/hot dip galvanizing and spraying powder
Light Sources：36w LPS & 25w HFED/24V lamp ( 7250Lm , ≧60000H life span)
Solar Panel：100w/24V 2 pcs monocrystalline solar panel , life span ＞20 years
Battery：120AH/12V 2 pcs gel battery , life span : 5-8 years
Working Time：8-10 hours/day , can continue working 2-3 days without sunlight
Controller：10A/24V optical & time control
Wind Resistance：≧ 136km/H
Working Temp：-30℃ ~ 60℃
Battery Box：underground
nuts , screw , bolts fixed mount , wrie, embedded parts , flange and others
Solar LED Street Light (SHT-017)
(double main roads)
Pole height：8m/seamless steel/hot dip galvanizing and spraying powder
Light Sources：35w LPS/24V lamp 2 pcs ( 4800Lm*2 , ≧60000H life span)
Solar Panel：115w/24V 2 pcs monocrystalline solar panel , life span ＞20 years
Battery：150AH/12V 2 pcs gel battery , life span : 5-8 years
Working Time：8-10 hours/day , can continue working 2-3 days without sunlight
Controller：10A/24V optical & time control
Wind Resistance：≧ 136km/H
Working Temp：-30℃ ~ 60℃
Battery Box：underground
nuts , screw , bolts fixed mount , wrie, embedded parts , flange and others
|
|
|
|
|
|
|
|
|
