▼ 品名/編號:LED Street Light (LED 路燈)
>> 其他產品

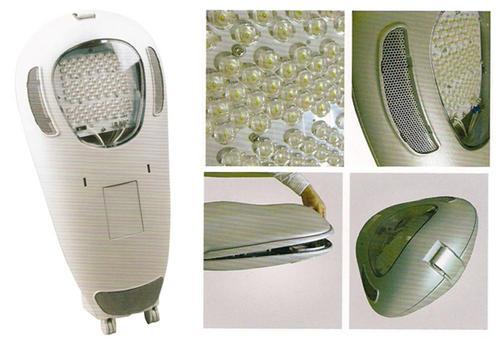

LED Street Light (LED 路燈)
>> 產品介紹
LED Street Light (DSL-020)
System Power Consumption: 20W
Luminous Flux @Ta=25℃:>1200lm
Max, illumination (E max.):>50 lux(@ 3M)
Voltage Range:AC 100~240V 50~60Hz
Operating Temp.:-30℃ ~ 60℃
Carrelated Color Temperature:4500~5500K
Weight:5 kg
Dimensions(mm) : 300 L × 190 W × 60 H
Fixture:Die-casting aluminum housing、Anodized PC cover、UV resistance
LED Life:>50000 hrs
Ingress Protection:IP65



LED Street Light (DSL-020)
System Power Consumption:40W
Luminous Flux @Ta=25℃:>2400 lm
Max, illumination (E max.):>52 lux(@ 4M)
Voltage Range:AC 100~240V 50~60Hz
Operating Temp.:-30℃ ~ 60℃
Carrelated Color Temperature:4500~5500K
Weight:5 kg
Dimensions(mm) : 500 L × 190 W × 60 H
Fixture:Die-casting aluminum housing、Anodized PC cover、UV resistance
LED Life:>50000 hrs
Ingress Protection:IP65



LED Street Light (DSL- 060)
System Power Consumption:60W
Luminous Flux @Ta=25℃:>3600 lm
Max, illumination (E max.):>22 lux(@ 6M)
Voltage Range:AC 100~240V 50~60Hz
Operating Temp.:-30℃ ~ 60℃
Carrelated Color Temperature:5000~6500K
Weight:9 kg
Dimensions(mm) :312 L × 562 W × 125H
Fixture:Die-casting aluminum housing、Anodized PC cover、UV resistance
LED Life:>50000 hrs
Ingress Protection:IP65



LED Street Light (DSL- 100)
System Power Consumption:100W
Luminous Flux @Ta=25℃:>6000 lm
Max, illumination (E max.):>20 lux(@ 8M)
Voltage Range:AC 100~240V 50~60Hz
Operating Temp.:-30℃ ~ 60℃
Carrelated Color Temperature:5000~6500K
Weight:9 kg
Dimensions(mm) :312 L × 562 W × 125H
Fixture:Die-casting aluminum housing、Anodized PC cover、UV resistance
LED Life:>50000 hrs
Ingress Protection:IP65



LED Street Light (DSL- 150)
System Power Consumption:150W
Luminous Flux @Ta=25℃:>7500 lm
Max, illumination (E max.):>20 lux(@ 10M)
Voltage Range:AC 100~240V 50~60Hz
Operating Temp.:-30℃ ~ 60℃
Carrelated Color Temperature:5000~6500K
Weight:9 kg
Dimensions(mm) :611 L × 296 W × 213 H
Fixture:Die-casting aluminum housing、Anodized PC cover、UV resistance
LED Life:>50000 hrs
Ingress Protection:IP67



LED Street Light (DSL- 180)
System Power Consumption:180W
Luminous Flux @Ta=25℃:>9000 lm
Max, illumination (E max.):>23 lux(@ 10M)
Voltage Range:AC 100~240V 50~60Hz
Operating Temp.:-30℃ ~ 60℃
Carrelated Color Temperature:5000~6500K
Weight:9 kg
Dimensions(mm) :611 L × 296 W × 213 H
Fixture:Die-casting aluminum housing、Anodized PC cover、UV resistance
LED Life:>50000 hrs
Ingress Protection:IP67



LED Street Light (DSL- 200)
System Power Consumption:200W
Luminous Flux @Ta=25℃:>10000 lm
Max, illumination (E max.):>26 lux(@ 10M)
Voltage Range:AC 100~240V 50~60Hz
Operating Temp.:-30℃ ~ 60℃
Carrelated Color Temperature:5000~6500K
Weight:9 kg
Dimensions(mm) :611 L × 296 W × 213 H
Fixture:Die-casting aluminum housing、Anodized PC cover、UV resistance
LED Life:>50000 hrs
Ingress Protection:IP67



LED Street Light (DSL- 320)
Light Source:High pow er white light D (Cree)
Optic:30 Degree, 60 Degree
Sys. Power consumption:320W ± 10%
Luminous Flux:3000 lm ~18000 lm
Voltage Range:AC 100~240V 50~60Hz
Operating Temp.:-30℃~50℃
Carrelated Color Temp. :5000~6500k
Dimensions:242 L X 160 W X 170 H
Weight:6 kg
Fixture:Aluminum alloy Φ ADC12Powder Plastic、Reinforce glass
LED Life:>50000 hrs
Ingress Protection IP65
