▼ 品名/編號：Mini PCIExpress Socket H=4.0mm |
|
>> 其他產品 |
|
![Mini PCIExpress Socket H=4.0mm]() |
>> 產品介紹

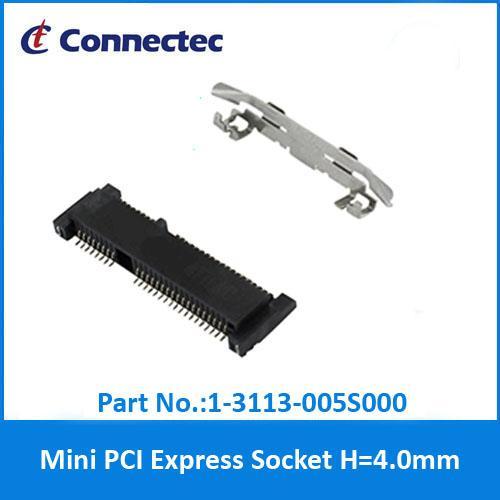

1-3113-005S000 Mini PCI Express Socket H=4.0mm
ELECTRICAL
Current Rating: 0.5A per pin
Voltage Rating: 50V DC
Contact Resistance: 55mΩ max.
Insulation Resistance: 500MΩ min.
Dielectric Withstanding Voltage: 300VAC
MECHANICAL
Durability: 100 Cycle
Insertion Force: 2.3Kgf max.
Extraction Force: 2.3Kgf max.
ENVIRONMENTAL
Operating temperature range: -40℃~+85℃
Storage temperature range: -40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature: 260℃ 10Sec |
|
 |
|
|
|
|
|
|
|
