▼ 品名/編號：GPS Antenna Ct-6180 SMA 5M |
|
>> 其他產品 |
|

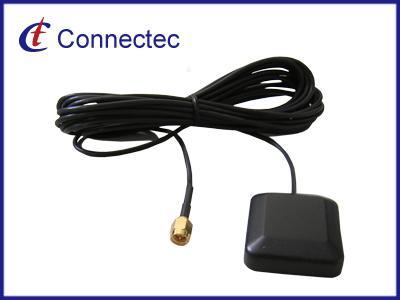

![GPS Antenna Ct-6180 SMA 5M]() |
>> 產品介紹
This antenna system consists of two functional blocks, the LNA portion and the patch antenna.
1 RF Cable RG174, ψ2.7±0.3mm, Black
Cable Length 5m±5cm
2 RF Connector SMA (M)
TOTAL SPECIFICATIONS (Through Antenna, LNA, Cable and Connector)
1 Frequency Range 1575.42 ± 1.023MHz
2 Gain At 90° 30±4.5 dBi – (cable loss) Note:1
mounted on the the 60mm*60m ground plane
3 Output Impedance 50Ω
4 VSWR 2.0 Max
Note 1: Cable Loss = Max.( –1.2dB / m)
|
|
|
|
|
|
|
|
|
