![4G LTE antenna]() |
>> 產品介紹

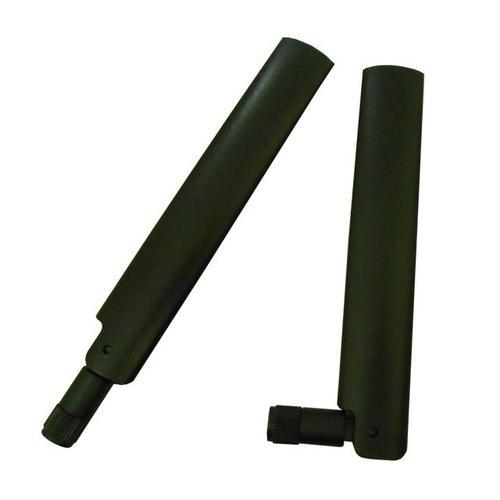

Features :
Antenna, swivel with SMA(M)st.(Nickel), Black
746 & 824-960 & 1710-2170, 2300-2500 & 2700MHz
Electrical Properties
◆ Frequency Range : 699-960MHz
VSWR : 3.5 Max
Gain : 1.0 dBi
◆ Frequency Range : 1710-2700MHz
VSWR : 3.0 Max
Gain : 2.5 dBi
◆ Impedance : 50Ω
◆ Radiation : Omni
Mechanical Properties
◆ Antenna Cover : ABS
◆ Tube Color : Black
◆ Operating Temperature : -20ºC~+65ºC
◆ Connector Type : SMA(A) Plug
◆ Cable Type : RG178 Cable |
|
|
|
|
|
|
|
|
