▼ 品名/編號：SIMCOM LTE SIM7600E-PCIE |
|
>> 其他產品 |
|

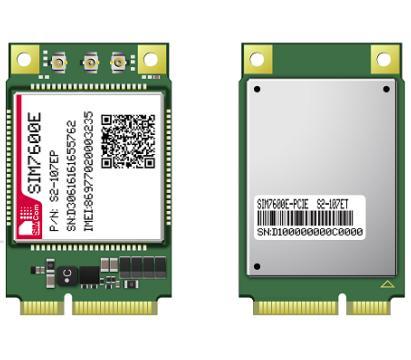

![SIMCOM LTE SIM7600E-PCIE]() |
>> 產品介紹
SIM7600X-PCIE is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in Mini PCIE type which supports LTE CAT1 up to 10Mbps for downlink and 5Mbps for uplink data transfer.It is combined with a SIM7600X (LCC) module and a Mini PCIE adapter board.
Variant for EMEA/Korea/Thailand
SIM7600E-PCIE:
- LTE-TDD B38/B40/B41
- LTE-FDD B1/B3/B5/B7/B8/B20
- UMTS/HSPA+ B1/B5/B8
- GSM/GPRS/EDGE B3/B8
General features
* Mini PCIE package
* Control Via AT Commands
* Supply voltage range: 3.0V~ 3.6V, 3.3V Typical
* Operation temperature: -40℃ to +85℃
* Dimension: 50.8*31*5.35mm
* Weight: 12.6g
* Bandwidth: 1.4/3/5/10/15/20MHz
* 3GPP E-UTRA Release 11
Specifications for Data transfer
* LTE CAT1
- Uplink up to 5Mbps
- Downlink up to 10Mbps
* HSPA+
- Uplink up to 5.76 Mbps
- Downlink up to 42 Mbps
* UMTS
- Uplink/Downlink up to 384Kbps
* EDGE
- Uplink/Downlink up to 236.8Kbps
* GPRS
- Uplink/Downlink up to 85.6Kbps
Other features
* USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
* USB Driver for Linux /Android
* RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
* MBIM to Win8
* Firmware update via USB
* TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS
SSL3.0/TLS1.0/TLS1.2
* DTMF (Sending and Receiving)
* Audio Playing
* USB Audio and VoLTE
* FOTA
Interfaces
* USB2.0 with High speed up to 480Mbps
* UART
* GPIO
* Antenna: Support Primary/Rx-diversity/GNSS active antenna
* (U)SIM card (1.8V/3.0V)
* Digital Audio through PCM (Optional)
* Analog Audio (Optional) ;Embedded SIM card socket (Optional)
* GNSS: GPS/GLONASS/Beidou/Galileo*
|
|
|
|
|
|
|
|
|
