▼ 品名/編號：SIMCOM LTE 4G module SIM7100C |
|
>> 其他產品 |
|

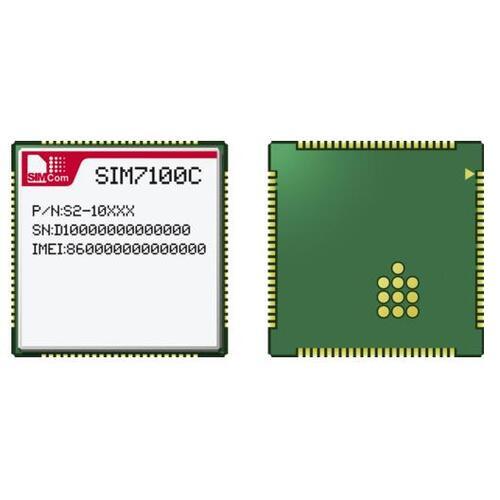

![SIMCOM LTE 4G module SIM7100C]() |
>> 產品介紹
SIMCom presents an ultra compact and reliable wireless module SIM7100C which is based on Qualcomm MDM9215 multiplemode LTE platform. SIM7100C is a complete multi-band TDD-LTE/FDD-LTE/TD-SCDMA/WCDMA/GSM/GNSS SMT type module designed with very powerful processors integrating application core:ARMv7 Cortex A5(1GHz), dual Telecom core (Up to 500Mhz), Cortex-M3 cores, allowing customer to benefit from small dimensions and cost-effective product solutions. It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capabilities like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s applications.
General features
* Four-Band TDD-LTE B38/B39/B40/B41
* Tri-Band FDD-LTE B1/B3/B7
* Dual-Band TD-SCDMA B34/B39
* Dual-Band UMTS/HSDPA/HSPA+ B1/B5
* Tri-Band GSM/GPRS/EDGE 850/900/1800 MHz
* Control Via AT Commands
* Supply voltage range : 3.4V~ 4.2V
* Operation temperature : -40℃ to +85℃
* Dimension : 30 X 30X 2.9 mm
* Weight : 5.7g
* GNSS gpsOne Gen 8B;standalone;assisted,XTRA;
Specifications for Data transfer
* TDD-LTE/FDD-LTE - Uplink up to 50Mbps, - Downlink up to 100Mbps
* TD-HSDPA/HSUPA - Uplink up to 2.2 Mbps, - Downlink up to 2.8 Mbps
* TD-SCDMA - Uplink up to 128Kbps, - Downlink up to 384Kbps
* HSPA+ - Uplink up to 11 Mbps, - Downlink up to 42 Mbps
* UMTS - Uplink/Downlink up to 384Kbps
* EDGE Class : - Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)
* GPRS - Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)
* CSD - GSM data rate 14.4Kbps - WCDMA data rate 57.6Kbps - WCDMA 64kbps CSD for Video call
Other features
* USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8
* USB Driver for Windows CE/Mobile
* USB Driver for Linux 2.6/Android
* USB Driver for MAC
* RIL supporting for Android/Windows CE/Mobile
* Automatic installation
* Linux API SDK
* Firmware update via USB
* TCP/IP/IPV4/V6 Multi-PDP,MT PDP
* FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
* Jamming detection support
* Gobi SDK to the Win7/Win8/Linux
* Source code of the PC manager of the device for reference
Interfaces
* USB2.0
* UART
* SIM card
* SPI
* I2C
* Keypad(5*5)
* Constant current sink
* GPIO
* RTC
* ADC
* PCM
* SDIO |
|
|
|
|
|
|
|
|
