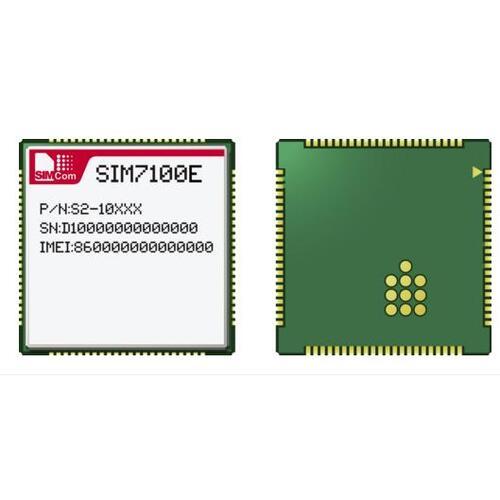

▼ 品名/編號：SIMCOM SIM7100E CAT3 4G |
|
>> 其他產品 |
|
![SIMCOM SIM7100E CAT3 4G]() |
>> 產品介紹
SIMCom presents an ultra compact and reliable wireless module SIM7100E which is based on Qualcomm MDM9215 multiplemode LTE platform. SIM7100E is a complete multi-band TDD-LTE/FDD-LTE/WCDMA/GSM/GNSS SMT type module designed with very powerful processors integrating application core:Cortex™ A5(550MHz),three QDSP6 cores (Up to 500Mhz), allowing customer to benefit from small dimensions and cost-effective product solutions.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capabilities like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s applications.
General features
* Five-Band FDD-LTE B1/B3/B7/B8/B20
* Dual-Band TDD-LTE B38/B40
* Dual-Band UMTS/HSDPA/HSPA+ B1/B8
* Dual-Band GSM/GPRS/EDGE 900/1800 MHz
* Control Via AT Commands
* Supply voltage range: 3.4V~ 4.2V
* Operation temperature: -40℃ to +85℃
* Dimension: 30 X 30X 2.9 mm
* Weight: 5.8g
* GNSS: gpsOne Gen 8B;standalone;assisted,XTRA;
Specifications for Data transfer
* LTE
- Uplink up to 50Mbps,
- Downlink up to 100Mbps
* HSPA+
- Uplink up to 5.76 Mbps,
- Downlink up to 42 Mbps
* UMTS
- Uplink/Downlink up to 384Kbps
* EDGE Class:
- Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)
* GPRS
- Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)
* CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call
Other features
* USB Driver for Microsoft Windows 2000/XP/Vista/7/8
* USB Driver for Windows CE/Mobile
* USB Driver for Linux /Android
* RIL supporting for Android/Windows CE/Mobile
* Automatic installation for windows
* Linux API SDK
* Firmware update via USB
* TCP/IP/IPV4/V6 Multi-PDP,MT PDP
* FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS
* DTMF
* Gobi SDK to the Win7/Win8/Linux
* MBIM to Win8
* Source code of the PC manager of the device for reference
Interfaces
* USB2.0
* UART
* SIM card
* SPI
* I2C
* Keypad(5*5)
* Constant current sink
* GPIO
* ADC
* PCM *
* SDIO |
|
|
|
|
|
|
|
|
