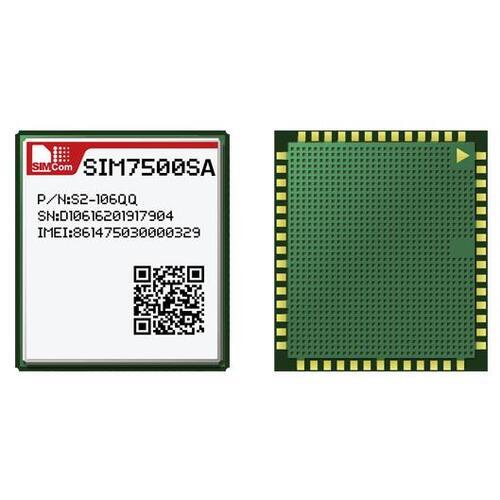

▼ 品名/編號：SIMCOM SIM7500SA CAT1 4G |
|
>> 其他產品 |
|
![SIMCOM SIM7500SA CAT1 4G]() |
>> 產品介紹
The SIM7500SA is Multi-Band LTE-FDD/HSPA module solution in a LGA type which supports LTE CAT1 up to 10Mbps for downlink data transfer.
It has strong extension capability with rich interfaces including UART, USB2.0, I2C, GPIO etc. With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer\'s application.
General features
* FDD-LTE B1/B3/B5/B7/B8/B28
* Dual-Band UMTS/HSDPA/HSPA+ B1/B5
* Control Via AT Commands
* Supply voltage range: 3.4V~ 4.2V
* Operation temperature: -40℃ to +85℃
* Dimension: 24*27*2.75mm
* Weight: 4.0g
Specifications for Data transfer
* LTE CAT1
- Uplink up to 5Mbps,
- Downlink up to 10Mbps
* HSPA+
- Uplink up to 5.76 Mbps,
- Downlink up to 42 Mbps
* WCDMA
- Uplink/Downlink up to 384Kbps
* CSD
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call
Other features
* USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8
* USB Driver for Windows CE/Mobile
* USB Driver for Linux /Android
* RIL supporting for Android/Windows CE/Mobile
* Automatic installation for windows
* Linux API SDK
* Firmware update via USB
* TCP/IP/IPV4/V6 Multi-PDP,MT PDP
* FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS
* DTMF
* MBIM to Win8
* Source code of the PC manager of the device for reference
Interfaces
* USB2.0
* UART
* SIM card
* I2C
* GPIO
* ADC
* PCM |
|
|
|
|
|
|
|
|
