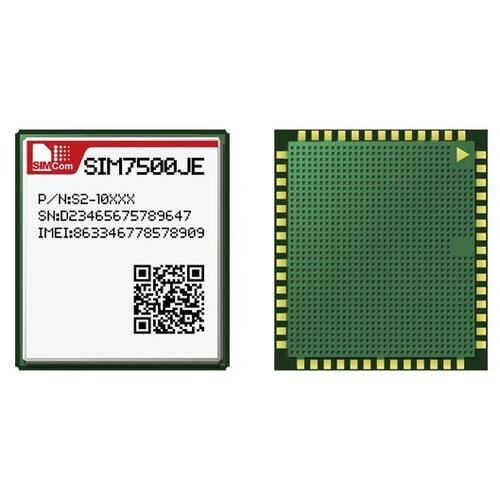

▼ 品名/編號：SIMCOM CAT1 LTE 4G SIM7500JE |
|
>> 其他產品 |
|
![SIMCOM CAT1 LTE 4G SIM7500JE]() |
>> 產品介紹
The SIM7500JE is Multi-Band LTE-FDD module solution in a LGA type which supports LTE CAT1 up to 10Mbps for downlink data transfer.
It has strong extension capability with rich interfaces including UART, USB2.0, I2C, GPIO etc. With abundant
application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer\'s application.
General features
* Tri-Band FDD-LTE B1/B3/B8
* Control Via AT Commands
* Supply voltage range: 3.4V~ 4.2V
* Operation temperature: -40℃ to +85℃
* Dimension: 24*27*2.75mm
* Weight: 4.0g
* GNSS gpsOne Gen 8B;standalone;assisted,XTRA
Specifications for Data transfer
* LTE CAT1
- Uplink up to 5Mbps,
- Downlink up to 10Mbps
Other features
* USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8
* USB Driver for Windows CE/Mobile
* USB Driver for Linux /Android
* RIL supporting for Android/Windows CE/Mobile
* Automatic installation for windows
* Linux API SDK
* Firmware update via USB
* TCP/IP/IPV4/V6 Multi-PDP,MT PDP
* FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS
* DTMF
* MBIM to Win8
* Source code of the PC manager of the device for reference
Interfaces
* USB2.0
* UART
* SIM card
* I2C
* GPIO
* ADC
* PCM |
|
|
|
|
|
|
|
|
