![LED T-BAR型輕鋼架燈產品]() |
>> 產品介紹
Applications
Area: Indoor use only
Purpose:
Office Lighting , Meeting Room Lighting , Shop Lighting , Classroom Lighting , Factory Lighting , ……
Features:
﹒600x600mm LED T-BAR luminaire installation is 100% compatible with the tranditional FL 600x600 mm luminaire
﹒100% No flicker
﹒High efficient power design (constant current source)
﹒Energy saving and environment friendly
Specification
Outline Dimension: 600(L) x 600(W) x 40(H) mm
Input Voltage / Frequency: 100 ~ 240Vac / 50 ~ 60Hz
Power Consumption: 35±5% Watts
Operating Temperature: -20°C ~ 50°C
Operating Relative Humidity: 20% ~ 80 %RH
Weight: 3.0 kg
IP (Ingress Protection): No
Certification: CE
Optical performance
Luminous Flux: >2400lm (System > 2000lm)
LED Efficiency: >70 lm/W
Beam Angle: >90 degree
Lifespan (L70 life)*: 20,000 hours
*Maintains at least 70% of initial lumen output

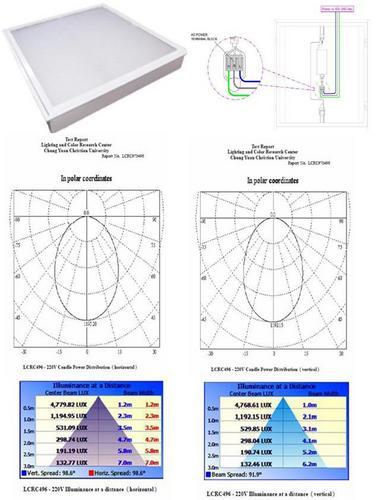

Typical optical characteristics:
Safety warning
Safety instruction:
The light is operated at low voltage (48Vdc) , so no safety issue
Cautions:
Don’t drop the luminaire on the ground since the luminaire will be damaged
Warnings:
(1) Don’t expose this product at the high temperature and high humidity environment
(2) Don’t connect the high AC voltage > 260Vac since it will damage the adapter
Installation guide
City power connection:
Only connect the extemal AC 100 ~ 240V to the terminal block
(which is same as conventional Fluorescent T-BAR)
Average life time
LED: 50,000 hours
System: 20,000 hours
Warranty: 1 year
|
|
 |
|
|
|
|
|
