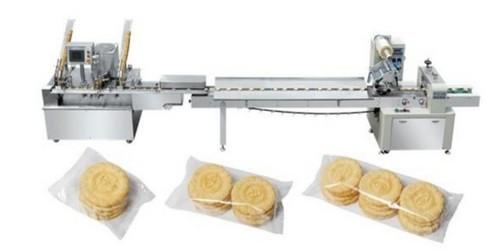

XYY-320S双伺服夹心连包机Double servo biscuit sandwiching machine connect packing machine
1夹心，包装位置自动对位，双伺服稳定性更高，可控性好，速应性强。
It’s automatic for the position between Sandwich and packaging, double servo controled are more stabled, controlled and higher speed .
2单层饼双层饼自动切换，不用换齿或推饼链。
Single-layer biscuit and double -layer biscuit are automatically switched and don’ need change gears or push biscuit chains.
3光电控制，自动检测缺饼，停机自动关闭给料器，确保不漏馅料，使机器干净。
Photoelectric controlled, automatic detect the lack of biscuit or not, it will automatically closed bunk-feederto ensure no leakage fillings,so can make the machine clean.
4长、方、圆、椭圆，各种规格的夹心饼干转换品种时，各部位调节快速、方便。
Long, square, round, various specifications of the biscuit sandwiching machines are easy to conversion and convenient to adjustment.
5本机主要采用不锈钢制造，外形新颖，符合食品卫生。
This machine is mainly made of stainless steel, the contour novel and complied with the food sanitation.
XYY-320S双伺服夹心连包机
Double servo biscuit sandwiching machine connect packing machine
饼干尺寸：圆饼：30-70mm
Biscuit size:Round: Φ:30-70mm
方饼：长30-70mm 宽30-70 厚3-8mm
Square:(L)30-70mm(W)30-70mm (H)3-8mm
产量：200-250包/分钟
Capacity:200-250 bags/min 工作电压：220v 50Hz
Operating voltage: 220v 50Hz
总功率：6kw
Total power:6kw 净重：900kg
Net weight:900kgs
尺寸：6000*900*1500mm
Machine size：6000*900*1500mm 特殊机型可订做
Special specifications can customize
|
|
|
|
|
|
|
|
|
