![上巨光電LED 軟條燈]() |
>> 產品介紹

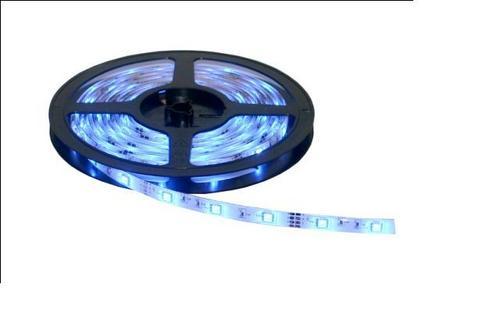

LED軟條燈 Flexible LED strip
CxLFx1-15000-x01
產品規格: Product Specification
電壓/頻率 12V DC
Voltage/Frequency 12V DC
LED消耗功率 9.5W/5M,37.5W/5M(±5%)
LED power consumption 9.5W/5M, 37.5W/5M (±5%)
產品尺寸 10*300mm,5M/捲
Dimension 10*300mm, 5M/roll
產品種類 室內,室外(防水)
Products Indoors, outdoors (waterproofed)
光線類型 紅,黃,藍,綠,暖白,正白光,七彩
Color temperature Red ray, Amber ray, Blue ray, Green ray, Warm white, True white, RGB (mixture light)
LED類型 3528 , 5050
LED types 3528, 5050
工作溫度 -20℃~50℃
Operation temperature -20℃~50℃
LED壽命 50000小時
LED life 50000 hours
電源 外置
Power External power supply
產品應用: Product Application
適用於各種形狀或間接光源,室內室外均可使用,無頻閃
Appropriate for any shapes or indirect light sources, can be used both indoors and outdoors, no frequent flash.
產品說明: Product Description
燈具內使用FPC(軟性PCB),可以任意彎曲,扭曲,任意裁減定長(每3PCS LED),色彩多,氣氛佳
Use FPC (soft PCB) inside the lamp, can be turned to any angles and be twisted, can be cut at any length (each 3PCS LED), full of colors, nice atmosphere.
產品特色: Product Features
◆ 可以任意彎曲,扭曲,任意裁減定長(每3PCS LED)
Can be turned to any angles and be twisted, can be cut at any length (each 3PCS LED).
◆ 亮度佳
Excellent luminance
◆ 功耗低,無頻閃
Low power consumption, no frequent flash.
◆散熱佳,壽命長
Excellent heat dissipation, long life.
|
|
|
|
|
|
|
|
|
