![上巨光電LED 投射燈]() |
>> 產品介紹

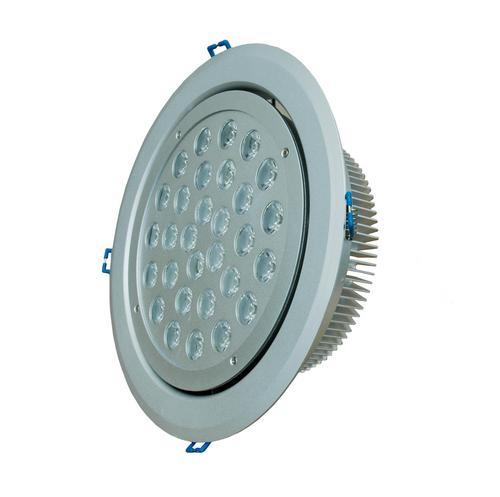

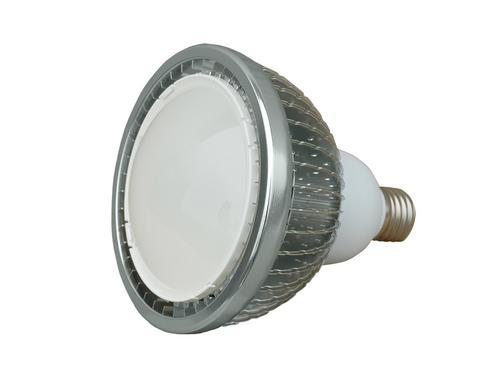

LED 聚光投射燈 LED Spot light
CxRxx1-25xxx-x01
產品規格:Product Specification
電壓/頻率 12VAC,DC
Voltage/Frequency 12VAC, DC
LED消耗功率 4.5 (±5%)瓦
LED power consumption 4.5 (±5%) W
產品種類 MR16.AR111.各類崁燈.射燈...等
Products MR16, AR111, down light, spot light … etc.
發光效率 >70流明/瓦
Luminous efficiency >70Lm (15W)
色溫(K) 2800K~3200K , 6000K~7100K
Color temperature 2800K~3200K (warm white) , 6000K~7100K(white)
工作溫度 -20℃~50℃
Operation temperature -20℃~50℃
LED壽命 50000小時
LED life 50000 hours
電源 內或外置,依各種燈具需求不同
Power power supply built in/external, depends on different lights.
產品應用: Product Application
取代傳統鹵素聚光燈,TGL生產之LED聚光燈,節能超過80%,無紫.紅外線,商品.物品不會退色,老舊,發黃,適用於各種展示櫃,櫥櫃,門廳...等Substitution of traditional Halogen lamp, for the TGL’s spot light, the energy save more than 80%, without the ultraviolet/ infrared rays, the goods won’t fade or easy to get old/turning yellow, it is fit for all kind of showcase/ cabinet/ entrance hall or lobby….etc.
產品說明:Product Description
舉例如傳統鹵素燈MR16(50w),TGL之LED MR16 4.5W,節能超過80%,無紫.紅外線,商品.物品不會退色,老舊,發黃;只需取下傳統鹵素燈,直接替換即可(加變壓器)
For example: compare with the traditional halogen lamp MR16 (50W) and TGL’s LED MR16 (4.5W), it saved 80% of energy, without the ultraviolet/ infrared rays, the goods won’t fade or easy to get old/turning yellow, only need to switch directly(need to add a transformer) .
產品特色:Product Features
◆恆流設計,光線穩定
LED constant current circuit design, stable luminous
◆功耗低,無頻閃
Low power consumption, no frequent flash
◆散熱佳,壽命長
Excellent heat dissipation, long life.
◆安裝容易
Easy for installation
|
|
 |
|
|
|
|
|
|
|
