▼ 品名/編號：GPS Receiver DS-GM451 |
|
>> 其他產品 |
|

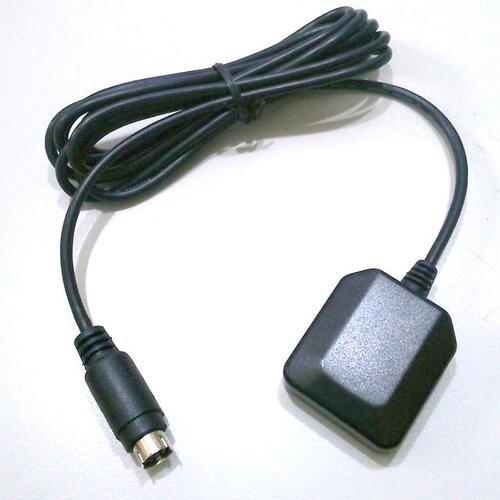

![GPS Receiver DS-GM451]() |
>> 產品介紹
DS-GM451 U8 is a GPS Mouse receiver build-in well-known Ublox 8 GPS chipset.
DS-GM451 U8 provides customer high position, velocity and time accuracy performances as well as high sensitivity and tracking capabilities. Customers benefit from the strength of both companies.
Thanks to the low power consumption technology, the DS-GM451 U8 is ideal for many portable applications such as PDA, Tablet PC, smart phone, automotive etc.
Features
- 72 channel Ublox M8 positioning engine.
- Ultra high sensitivity to -167 dBm.
- GPS L1C/A, SBAS L1C/A, QZSS L1C/A and Galileo E1B/support.
- Supports GLONASS and is ready for Galileo.
- Supports UART, USB and RS232 interface.
- Up to 10 Hz update rate.
- LED indicate location fix.
- Ultra low power consumption.<10mW required for TricklePower™ mode
- Ultra miniature 29 x 29 mm dimension
- Operating temperature range: -40 to 85°C
- RoHS compliant (lead-free)
- Water proof (IPX6)
Applications
- Automotive
- Personal/Portable Navigation (PDA)
- Geographic Surveying
- Sports and Recreation
- Marine Navigation
- Fleet Management |
|
|
|
|
|
|
|
|
