▼ 品名/編號：SiRF V GPS模組 DS-G340 MCX |
|
>> 其他產品 |
|
![SiRF V GPS模組 DS-G340 MCX]() |
>> 產品介紹

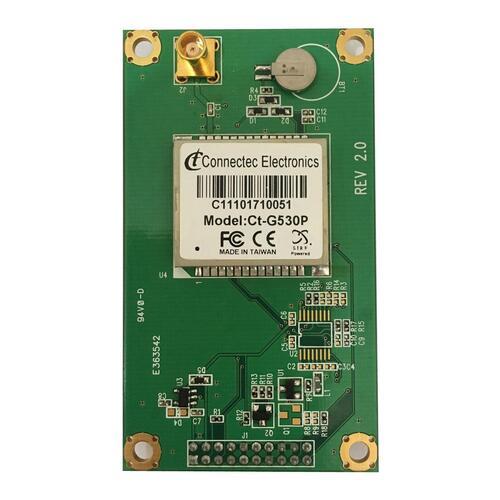

SiRF V GPS Module
The DS-G340 w/Ct-G530P module is high performance, low power GNSS receiver, based on the SiRFStarV single chipset technology while providing fast time-to -first-fix.
Its far reaching capability meets the sensitivity requirements of car navigation as well as other location-based applications. DS-G340 w/Ct-G530P is designed to allow quick and easy integration into GPS-related applications, especially for compact size devices, such as:
- Fleet Management / Asset Tracking
- AVL and Location-Based Services
Performance
- GPS, GLONASS, Galileo, BDS and SBAS reception for high GNSS availability and accuracy
- 52 track verification channels
- Active Jammer Remover, removes in-band jammers up to 80 dB-Hz
- Multimode A-GPS (Autonomous, MS-Based, and MS-Assisted), need operator support.
- SiRFGeoRecovTM Reverse EE makes positioning process being done under power saving mode.
- RF Metal Shield for best performance in noisy environments
- High sensitivity navigation engine (PVT) tracks as low as
- GPS: -165dB,
- GLONASS: -161dBm
- SBAS (WAAS, EGNOS, QZSS, MSAS, GAGAN)
- Tracks up to 8 CW jammers
- Enbedded CGEE/SGEE (With back-end server support) speed up TTFF a lot and makes cold start time to be around 20+ seconds.
- Reacquisition Time: 0.1 second
Interface
- Universal Asynchronous Receiver/Transmitter (UART)
- Protocol: NMEA-0183(default)
- Baud Rate: 4800 bps (default)
- DIP type pitch 2.0mm- 2x10 pin header.
- Right angle MCX (RMCX) / MCX / Right angle SMA (RSMA) RF Connector.
- Dimensions : 40.64 x 71.12 x 1.4 mm |
|
 |
|
|
|
|
|
|
|
