▼ 品名/編號：Cat4 4G LTE Module SIM7600CE |
|
>> 其他產品 |
|

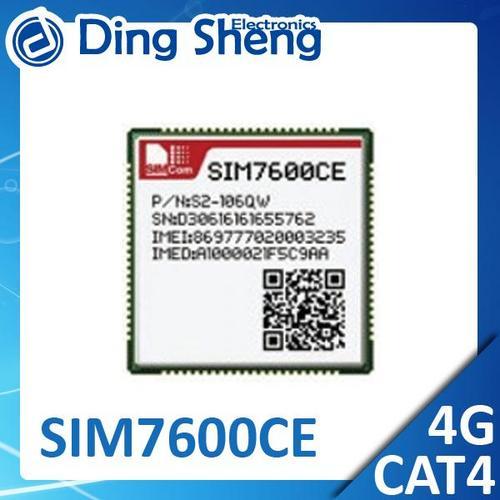

![Cat4 4G LTE Module SIM7600CE]() |
>> 產品介紹
Cat4 4G LTE Module
SIM7600CE is Multi-Band LTE-TDD/LTE-FDD/HSPA+/TD-SCDMA/EVDO and Dual-Band GSM/GPRS/EDGE module solution in a SMT type which supports LTE CAT4up to 150Mbps for downlink data transfer.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,GPIOetc.
With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module providesmuch flexibility and ease of integration for customer\'s application.
General features
- Quad-Band TDD-LTE B38/B39/B40/B41
- Tri-Band FDD-LTE B1/B3/B8
- Dual-Band TD-SCDMA B34/B39
- Dual-Band UMTS/HSDPA/HSPA+ B1/B8
- CDMA 1X/EVDO BC0
- GSM/GPRS/EDGE 900/1800 MHz
- Control Via AT Commands
- Supply voltage range: 3.4V~ 4.2V
- Operation temperature: -40℃ to +85℃
- Dimension: 30*30*2.9 mm
- Weight: 5.5g
- GNSS gpsOne Gen 8B;standalone;assisted,XTRA
Specifications for Data transfer
- LTE CAT4
- Uplink up to 50Mbps,
- Downlink up to 150Mbps
- TD-SCDMA
- Uplink up to 128Kbps,
- Downlink up to 384Kbps
- TD-HSDPA/HSUPA
- Uplink up to 2.2 Mbps,
- Downlink up to 2.8 Mbps
- HSPA+
- Uplink up to 5.76 Mbps,
- Downlink up to 42 Mbps
- UMTS
- Uplink/Downlink up to 384Kbps
- EDGE Class
- Uplink/Downlink up to 236.8Kbps
- GPRS
- Uplink/Downlink up to 85.6Kbps
- CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call
Other features
- USB Driver for Microsoft Windows
2000/XP/Vista/Win7/Win8
- USB Driver for Windows CE/Mobile
- USB Driver for Linux /Android
- RIL supporting for Android/Windows CE/Mobile
- Automatic installation for windows
- Linux API SDK
- Firmware update via USB
- TCP/IP/IPV4/V6 Multi-PDP,MT PDP
- FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS
- DTMF
- MBIM to Win8
- Source code of the PC manager of the device for reference
Interfaces
- USB2.0
- UART
- SIM card
- SPI
- I2C
- Constant current sink
- GPIO
- ADC
- PCM
- SDIO |
|
|
|
|
|
|
|
|
