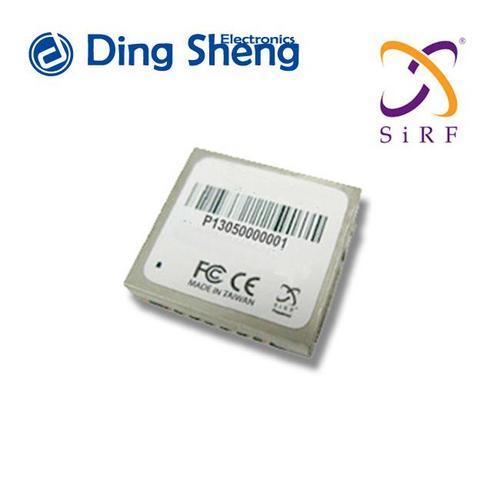

▼ 品名/編號：SiRF V GPS/GNSS模組 Ct-G551 |
|
>> 其他產品 |
|
![SiRF V GPS/GNSS模組 Ct-G551]() |
>> 產品介紹
GPS/GNSS/GALILEO/QZSS/SBAS Module
The Ct-G551 GPS module is a high sensitivity, low power, Surface Mount Device (SMD) that fully utilized SiRFstarV upgraded features.
This 48-channel Global Positioning System (GPS) and Global Navigation Satellite System (GLONASS) receiver is designed for a wide range of OEM applications and is based on the GPS signal search capabilities of the SiRFstarV CSRG05e ROM chipset, Serf’ s newest chipset technology.
The Ct-G551 provides flexible bus interfaces (UART).
Performance
• High Performance Solution
• GPS, GLONASS, Galileo and SBAS reception for high GNSS availability and accuracy
• High sensitivity navigation engine (PVT) tracks as low as
GPS:-164dBm、GLONASS:- 161dBm
• 48 track verification channels
• SBAS (WAAS or EGNOS,MSAS)
• Active Jammer Remover
• Removes in-band jammers up to 80 dB-Hz
• Tracks up to 8 CW jammers
• Multimode A-GPS (Autonomous, MS-Based, and MS-Assisted) – Need operator support
• Embedded CGEE / SGEE (With back-end server support) speed up TTFF a lot and makes cold
start time to be around 20+ seconds
• SiRFGeoRecovTM Reverse EE makes positioning process being done under power saving mode.
• Reacquisition Time: 0.1 second
• RF Metal Shield for best performance in noisy environments
Hardware and Software
• Based on the high performance features of SiRFstarV™ low power single core logic.
• Adaptive micropower controller
• Only 50 to 500μA maintains hot start capability (core logic)
• < 10mW required for TricklePower™ mode
• RoHS compliant (lead-free)
• SMT pads allow fully automatic assembly processes equipment and reflow soldering
• Advanced navigation features
• Smart sensor I²C interface
• Interrupt input for context change detection
• Dimension : 15 x 14 x 2.8 mm |
|
|
|
|
|
|
|
|
