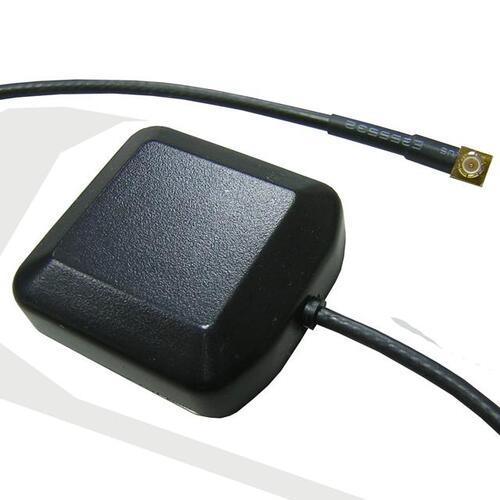

▼ 品名/編號：Combo GPS Glonass Antenna |
|
>> 其他產品 |
|
![Combo GPS Glonass Antenna]() |
>> 產品介紹
Features
● High gain and low noise figure
● With high rejection saw filter
● Ultra low power consumption
● Excellent Temperature Stability
● Magnetic Mount Base
● Varied cable length and connectors are available
Application
● Car navigation system
● A.V.L tracking system
Specifications
Patch Antenna
Type
- Frequency : 1573MHZ~1610MHZ
- Ground Plane : 46.5×46.5mm
- Bandwidth : 40MHz
- Gain at Zenith : +3.0dBi typ
- VSWR : 2.0 dB max
- Impedance : 50Ω
- Operating Temperature : -40℃~+85℃
- Polarization : RHCP
LNA Performance
Type
- Frequency : 1592MHz±20 MHz
- System Gain without cable : 27 dB typ (+25℃±10℃)
- Noise Figure : 1.2 dB typ (+25℃±10℃)
- Output VSWR : 2.0 dB max
- Voltage : 2.7~3.3V
- Current Consumption : 8 mA typ @3V
- Operating Temperature : -40℃~+85℃
Others
Type
- Dimension : L: 46.5mmW:46.5mm H:14mm
- Waterproof : 100% waterproof
- Plastic color : Black
- Cable type : RG-174
- Cable Length : 5 meters
- Connector Type : SMA
- Mounting Method : Magnet
|
|
|
|
|
|
|
|
|
