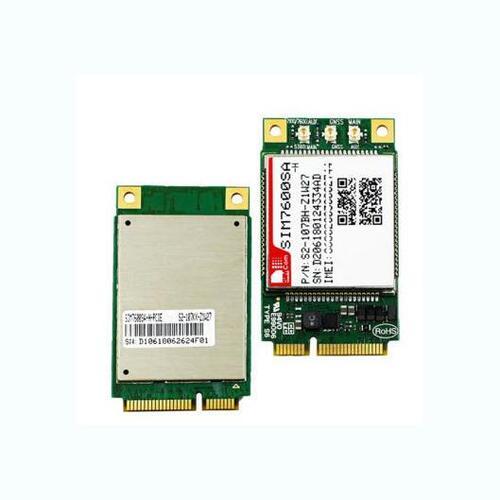

![SIMCOM SIM7600SA-H]() |
>> 產品介紹
SIM7600SA-H is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in LCCtype which supports LTE CAT4up to 150Mbps for downlink and 50Mbps for uplink data transfer.Designed in the compact and unified form factor, SIM7600SA-H is compatible with SIMCom HSPA+ SIM5360 module/LTE CAT1 SIM7600SA and LTE CAT3 SIM7100 module, which allows customer to design their application once for different technology and benefit from great development time-saving.
General features
Variant for Australia/New Zealand/South America
SIM7600SA-H:
• LTE-TDDB40
• LTE-FDDB1/B2/B3/B4/B5/B7/B8/B28
• UMTS/HSPA+ B1/B2/B5/B8
• GSM/GPRS/EDGE850/900/1800/1900MHz
• LCC Package
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V, 3.8V Typical
• Operation temperature: -40℃to +85℃
• Dimension: 50.8*31*5.35mm
• Weight: 5.7g
• Bandwidth: 1.4/3/5/10/15/20MHz
• 3GPP E-UTRA Release 11
Specifications for Data transfer
• LTE CAT4
-Uplink up to 50Mbps
-Downlink up to 150Mbps
• HSPA+
-Uplink up to 5.76Mbps
-Downlink up to 42 Mbps
• UMTS
-Uplink/Downlink up to 384Kbps
• EDGE
-Uplink/Downlink up to 236.8Kbps
• GPRS
-Uplink/Downlink up to 85.6Kbps
Other features
• USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
• USB Driver for Linux /Android
• RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
• MBIM to Win8
• Firmware update via USB
• TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/SMTP/SMTPS/DNS
• SSL3.0/TLS1.0/TLS1.2
• DTMF (Sending and Receiving)
• Audio Playing
• USB Audio and VoLTE
• FOTA
• eCall*
Interfaces
• USB2.0 with High speed up to 480Mbps
• UART
• GPIO
• Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas
• (U)SIM card (1.8V/3.0V)
• Digital Audio through PCM
• MMC/SD
• SDIO
• ADC
• GNSS: GPS/GLONASS/Beidou/Galileo* |
|
|
|
|
|
|
|
|
