▼ 品名/編號：板式蒸發器&瞬間殺菌系統 Evaporators&Short-time Heating Sysytem |
|
>> 其他產品 |
|
![板式蒸發器&瞬間殺菌系統 Evaporators&Short-time Heating Sysytem]() |
>> 產品介紹
我們提供API Heat Transfer Schmidt Plate Heat Exchager:
1.墊圈式板式熱交換器

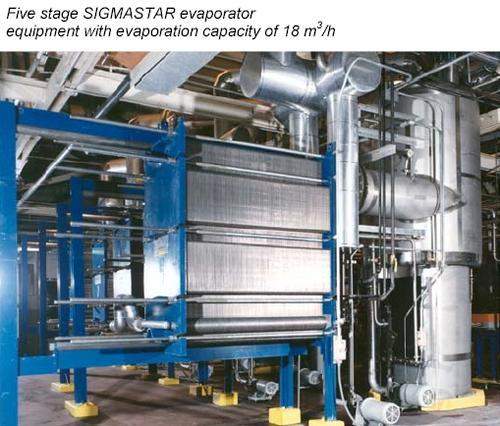

2.板式蒸發器
3.全焊式熱交換器

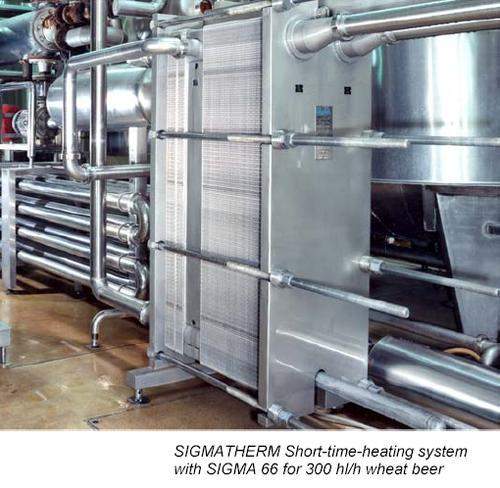

4.瞬間殺菌系統
與我們連繫索取規格書!
我們提供的板式熱交換器經百年來的累積設計經驗，以逆流式設計，緊湊結構與板片多樣的選擇性，廣泛的運用成為熱交換器系統中的先驅。
特 性:
1.高熱傳導係數可達7000 W/m2K
有效的熱回收率，對部分技術及經濟面的應用更可達 96%。
2.較低的熱損失，因熱交換器構造之外表面曝露僅只有 3%。
3.結構緊湊 (當打開拆卸交換器時無需額外的空間)不會與製程流體混合。
4.邊緣結構強化-最高操作溫度可達 300℃最大操作壓力可達 30 Bar。
5.彈性化設計（可容易地依製程需求調整來增加或減少少板片的數量）
6.低積垢率及低壓力損失。
7.維護簡單及清潔容易(CIP)
8.低購置成本，提供特殊合金材質，如鈦、鈦-鈀、赫斯特合金等
Available for API Heat Transfer Schmidt Plate Heat Exchager:
1.Gasketed plate heat exchangers
2.Evaporators
3.All welded heat exchangers
4.Short-time Heating System
Avialable for specification sheet to contact with us
The plate heat exchanger integrates experience
and knowledge accumulated for more than a
century. Incorporating count flow, and having
a compact construction and versatile plate type,
PHE has a variety of applications notably in heat transfer systems.
Features:
1.High heat transfer coefficient, up to7000 W/m2K
Optimized heat recovery, up to 96% achieved,
2.Low heat loss due to only 3% of the heat exchangers area exposed to the outside environment .
3.Compact construction means no additional space required when opening
4.No mixing of process fluids.
5.Reinforcements of the edge --Max. operating temp. up to 300 ºC
Max. operating pressure up to 30 BAR
6.Flexible design (easy insertion or removal of plates for adjustment when process requirements change)
7.Low fouling and low pressure losses
Easy maintenance and cleaning (CIP)
8.Low purchase cost, customized using special alloy materials including Titanium, Ti -Palladium and Hastelloy alloy. |
|
 |
|
|
|
|
|
|
|
