▼ 品名/編號：石墨殼管式熱交換器 Graphite Shell & Tube Heat Exchangers |
|
>> 其他產品 |
|

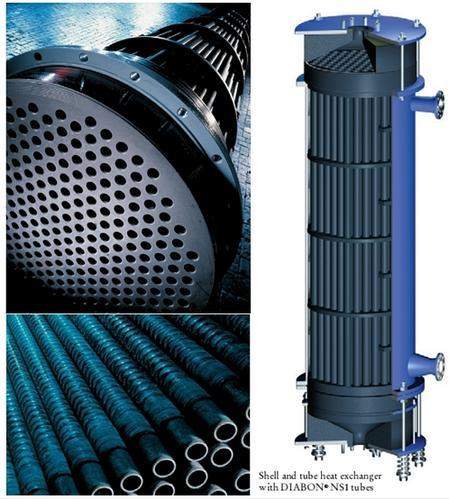

![石墨殼管式熱交換器 Graphite Shell & Tube Heat Exchangers]() |
>> 產品介紹
結合石墨製品之管殼式熱交換器，以廣泛的抗腐蝕性及耐高溫特性，經德國TÜV實驗認證可耐200℃長期連續操作。再經過碳纖維強化石墨外管，明顯地增加破裂強度30~40%，使製品之抗蒸氣沖壓及亢超過極限的工作壓力能力更強。萬一因內部突發壓力而破裂，管外碳纖維包覆的保護下，仍可確保液體不滲漏而損及製程操作。
1.熱交換面積大( 超過2000 m2 )
2.最大服務側壓力可達16 Bar
3.服務側具有極佳排空冷凝水裝置可完全排空
4.最大操作溫度可達200℃l
5.管端板為完整石墨製造 l
6.依AD規格製造並經由TUV檢驗認證
Graphite-based shell and tube heat exchangers combine the universal corrosion resistance and high temperature operation (up to 200℃ - certified by TÜV). Graphite tubes reinforced with carbon fiber have increased bursting strength from 30% to 40% improving its resistance to hammering and pressure shock. In the event of sudden increase in pressure resulting in the cracking of the graphite tubes, the carbon fiber ensures no leakage of liquid; thus removing the need to shut down the system.
1.Large heat exchange area (over 2000m2)
2.Max.service side Pressure 16Bar
3.With permission of steam on the service side,
4.excellent drainage of the condensation
5.Max. service temperature up to 200℃
6.Tube sheet made from whole graphite
7.Designed for AD specification, and certificated by TÜV |
|
 |
|
|
|
|
|
|
|
