▼ 品名/編號：SIMCOM CAT3 4G LTE MINI PCIE |
|
>> 其他產品 |
|

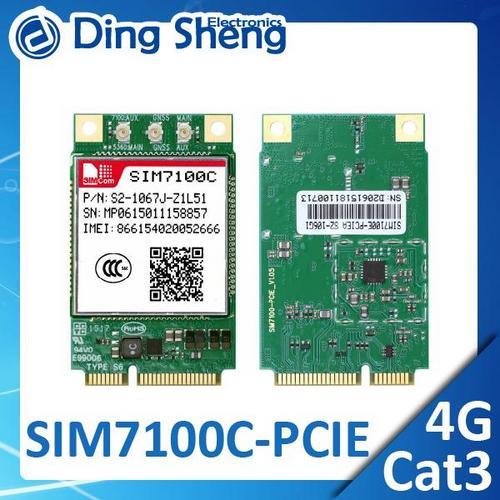

![SIMCOM CAT3 4G LTE MINI PCIE]() |
>> 產品介紹
SIMCom presents an ultra compact and reliable wireless module SIM7100C which is based on Qualcomm MDM9215 multiplemode LTE platform. SIM7100C is a complete multi-band TDD-LTE/FDD-LTE/TD-SCDMA/WCDMA/GSM/GNSS SMT type module designed with very powerful processors integrating application core:ARMv7 Cortex™ A5(1GHz), dual Telecom core (Up to 500Mhz), Cortex-M3 cores, allowing customer to benefit from small dimensions and cost-effective product solutions. It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capabilities like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer\\\'s applications.
Band
-TDD-LTE :Four-Band B38/B39/B40/B41
-FDD-LTE :Tri-Band B1/B3/B7
-TD-SCDMA : Dual-Band B34/B39
-UMTS/HSDPA/HSPA+ : Dual-Band B1/B5
-GSM/GPRS/EDGE : Tri-Band 850/900/1800 MHz
General Features
-Supply voltage range : 3.4V~ 4.2V
-Operation temperature : -40°C to +85°C
-Dimension : 50.95 x 32 x 4.95 mm
-Weight : 7g |
|
|
|
|
|
|
|
|
