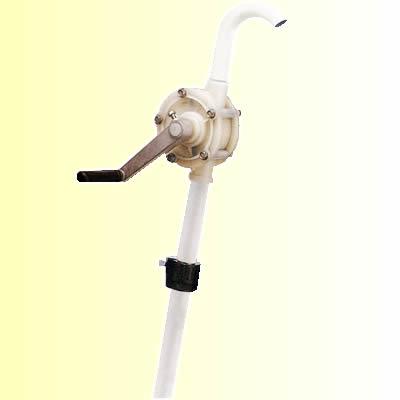

▼ 品名/編號：ROTARY DRUM PUMP JW-220 |
|
>> 其他產品 |
|
![ROTARY DRUM PUMP JW-220]() |
>> 產品介紹
Specifications:
Pump Type: Rotary - Vane
Flow: 12 oz / Stroke
Maximum Fluid Temperature: 130˚F / 54˚C
Mounting: 2" MNPT Bung Adapter
Suction Tube Length: 40" Maximum
Inlet: 1-1/4" O.D.
Outlet: 1" O.D. Curved Spout
Wetted Parts: Pvdf
Maximum Viscosity: 2,000 SSU
Standard Packing: 6pcs/ctn, NW: 18kgs, GW: 20kgs, Cuft: 2.2'
Features:
Made from durable, light weight, rust resistance and high chemical resistance materials.
Suitable for transferring most soluble, corrosive, volatile & edible liquids which are compatible with Teflon and Viton.
Supply with 2" Bung adapter and 3-piece PVDF suction tube to fit most 15, 30 and 55 gallon drums.
Self-priming unit, dispenses approximately 12 oz per stroke.
Liquids do not with dirt to ensure pump life. |
|
|
|
|
|
|
|
|
